Volvo EC70 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

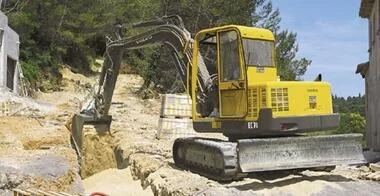

Caption: Volvo EC70 Crawler Excavator in jobsite field operations

Volvo logoMidi Excavator

Volvo EC70

Midi Excavator (6 - 10t) · Crawler Chassis

Operating Weight7.0 T Class
7,035 kg
≈ 15,509.5 lbs
Max Dig DepthGround Reach
3.18 m
≈ 10.4 ft
Net Engine PowerCrawler
55.3 HP
≈ 41 kW
Verified Technical Fact Sheet · Volvo EC70

The official operating weight of the Volvo EC70 is 7,035 kg (15,509.5 lbs), with a net engine output of 55.3 HP and a maximum digging depth of 3.18 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
S4S
Net Power
55.3 HP (41 kW)
Gross Power
55.3 HP
Displacement
3.33 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
7,035 kg
Weight (lbs)
15,509.5 lbs
Hydraulic System Flow
160.1 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.23 m³

Working Dimensions & Dig Depth

Max Digging Depth
3.18 m (10.4 ft)
Max Reach (Ground)
7.23 m
Max Dump Height
6.63 m
Shipping Width
2152 mm
Shipping Height
2588 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC70 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC70

How much does a Volvo EC70 excavator weigh?

The official operating weight of the Volvo EC70 hydraulic excavator is 7,035 kg (15,509.5 lbs) (7 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.

What is the maximum digging depth of the Volvo EC70?

The maximum digging depth for the Volvo EC70 is 3.18 m (10.4 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC70 have?

The Volvo EC70 is powered by a S4S powertrain delivering 55.3 HP (41 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC70?

The Volvo EC70 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
