Volvo EC700CL Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

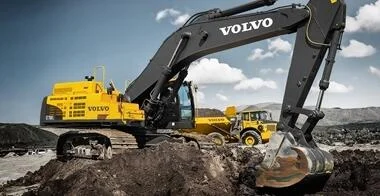

Caption: Volvo EC700CL Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC700CL

Mining Excavator (> 50t) · Crawler Chassis

Operating Weight71.7 T Class
71,700 kg
≈ 158,071.3 lbs
Max Dig DepthGround Reach
7.25 m
≈ 23.8 ft
Net Engine PowerCrawler
424 HP
≈ 316 kW
Verified Technical Fact Sheet · Volvo EC700CL

The official operating weight of the Volvo EC700CL is 71,700 kg (158,071.3 lbs), with a net engine output of 424 HP and a maximum digging depth of 7.25 m. Classified as a Mining Excavator (> 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D16E EAE3
Net Power
424 HP (316 kW)
Gross Power
464 HP
Displacement
16.09 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
71,700 kg
Weight (lbs)
158,071.3 lbs
Hydraulic System Flow
870.6 L/min
Fuel Tank Capacity
N/A
Standard Bucket
N/A

Working Dimensions & Dig Depth

Max Digging Depth
7.25 m (23.8 ft)
Max Reach (Ground)
14.50 m
Max Dump Height
9.40 m
Shipping Width
4289 mm
Shipping Height
4953 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC700CL jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC700CL

How much does a Volvo EC700CL excavator weigh?

The official operating weight of the Volvo EC700CL hydraulic excavator is 71,700 kg (158,071.3 lbs) (71.7 metric tonnes), categorizing it within the Mining Excavator (> 50t) range.

What is the maximum digging depth of the Volvo EC700CL?

The maximum digging depth for the Volvo EC700CL is 7.25 m (23.8 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC700CL have?

The Volvo EC700CL is powered by a D16E EAE3 powertrain delivering 424 HP (316 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC700CL?

The Volvo EC700CL is classified as a Mining Excavator (> 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
