Volvo ECR235CL Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

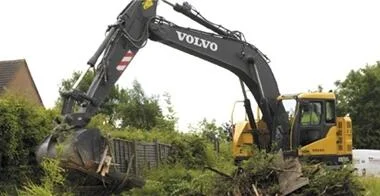

Caption: Volvo ECR235CL Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo ECR235CL

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight25.4 T Class
25,433 kg
≈ 56,070.1 lbs
Max Dig DepthGround Reach
5.73 m
≈ 18.8 ft
Net Engine PowerCrawler
147 HP
≈ 110 kW
Verified Technical Fact Sheet · Volvo ECR235CL

The official operating weight of the Volvo ECR235CL is 25,433 kg (56,070.1 lbs), with a net engine output of 147 HP and a maximum digging depth of 5.73 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D6E EAE3
Net Power
147 HP (110 kW)
Gross Power
165 HP
Displacement
5.7 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
25,433 kg
Weight (lbs)
56,070.1 lbs
Hydraulic System Flow
401.3 L/min
Fuel Tank Capacity
N/A
Standard Bucket
1.22 m³

Working Dimensions & Dig Depth

Max Digging Depth
5.73 m (18.8 ft)
Max Reach (Ground)
9.73 m
Max Dump Height
7.88 m
Shipping Width
3091 mm
Shipping Height
3082 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo ECR235CL jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo ECR235CL

How much does a Volvo ECR235CL excavator weigh?

The official operating weight of the Volvo ECR235CL hydraulic excavator is 25,433 kg (56,070.1 lbs) (25.4 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Volvo ECR235CL?

The maximum digging depth for the Volvo ECR235CL is 5.73 m (18.8 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo ECR235CL have?

The Volvo ECR235CL is powered by a D6E EAE3 powertrain delivering 147 HP (110 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo ECR235CL?

The Volvo ECR235CL is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
