Volvo ECR38 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

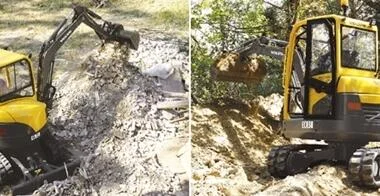

Caption: Volvo ECR38 Crawler Excavator in jobsite field operations

Volvo logoMini Excavator

Volvo ECR38

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight3.3 T Class
3,336 kg
≈ 7,354.6 lbs
Max Dig DepthGround Reach
2.79 m
≈ 9.2 ft
Net Engine PowerCrawler
27 HP
≈ 20 kW
Verified Technical Fact Sheet · Volvo ECR38

The official operating weight of the Volvo ECR38 is 3,336 kg (7,354.6 lbs), with a net engine output of 27 HP and a maximum digging depth of 2.79 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D1.6
Net Power
27 HP (20 kW)
Gross Power
27.6 HP
Displacement
1.64 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
3,336 kg
Weight (lbs)
7,354.6 lbs
Hydraulic System Flow
94.3 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.15 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.79 m (9.2 ft)
Max Reach (Ground)
5.15 m
Max Dump Height
3.33 m
Shipping Width
1622 mm
Shipping Height
2441 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo ECR38 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo ECR38

How much does a Volvo ECR38 excavator weigh?

The official operating weight of the Volvo ECR38 hydraulic excavator is 3,336 kg (7,354.6 lbs) (3.3 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Volvo ECR38?

The maximum digging depth for the Volvo ECR38 is 2.79 m (9.2 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo ECR38 have?

The Volvo ECR38 is powered by a D1.6 powertrain delivering 27 HP (20 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo ECR38?

The Volvo ECR38 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
