Volvo ECR58D Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: None

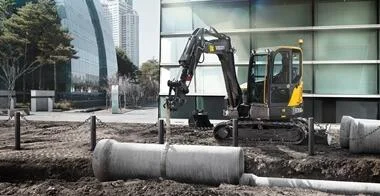

Caption: Volvo ECR58D Crawler Excavator in jobsite field operations

Volvo logoMini Excavator

Volvo ECR58D

Midi Excavator (6 - 10t) · Crawler Chassis

Operating Weight7.0 T Class
7,003 kg
≈ 15,439 lbs
Max Dig DepthGround Reach
2.47 m
≈ 8.1 ft
Net Engine PowerCrawler
47 HP
≈ 35 kW
Verified Technical Fact Sheet · Volvo ECR58D

The official operating weight of the Volvo ECR58D is 7,003 kg (15,439 lbs), with a net engine output of 47 HP and a maximum digging depth of 2.47 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D2.6H
Net Power
47 HP (35 kW)
Gross Power
49 HP
Displacement
N/A
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
7,003 kg
Weight (lbs)
15,439 lbs
Hydraulic System Flow
N/A
Fuel Tank Capacity
N/A
Standard Bucket
0.31 m³

Working Dimensions & Dig Depth

Max Digging Depth
2.47 m (8.1 ft)
Max Reach (Ground)
N/A
Max Dump Height
N/A
Shipping Width
N/A
Shipping Height
2621 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo ECR58D jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo ECR58D

How much does a Volvo ECR58D excavator weigh?

The official operating weight of the Volvo ECR58D hydraulic excavator is 7,003 kg (15,439 lbs) (7 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.

What is the maximum digging depth of the Volvo ECR58D?

The maximum digging depth for the Volvo ECR58D is 2.47 m (8.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo ECR58D have?

The Volvo ECR58D is powered by a D2.6H powertrain delivering 47 HP (35 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo ECR58D?

The Volvo ECR58D is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
