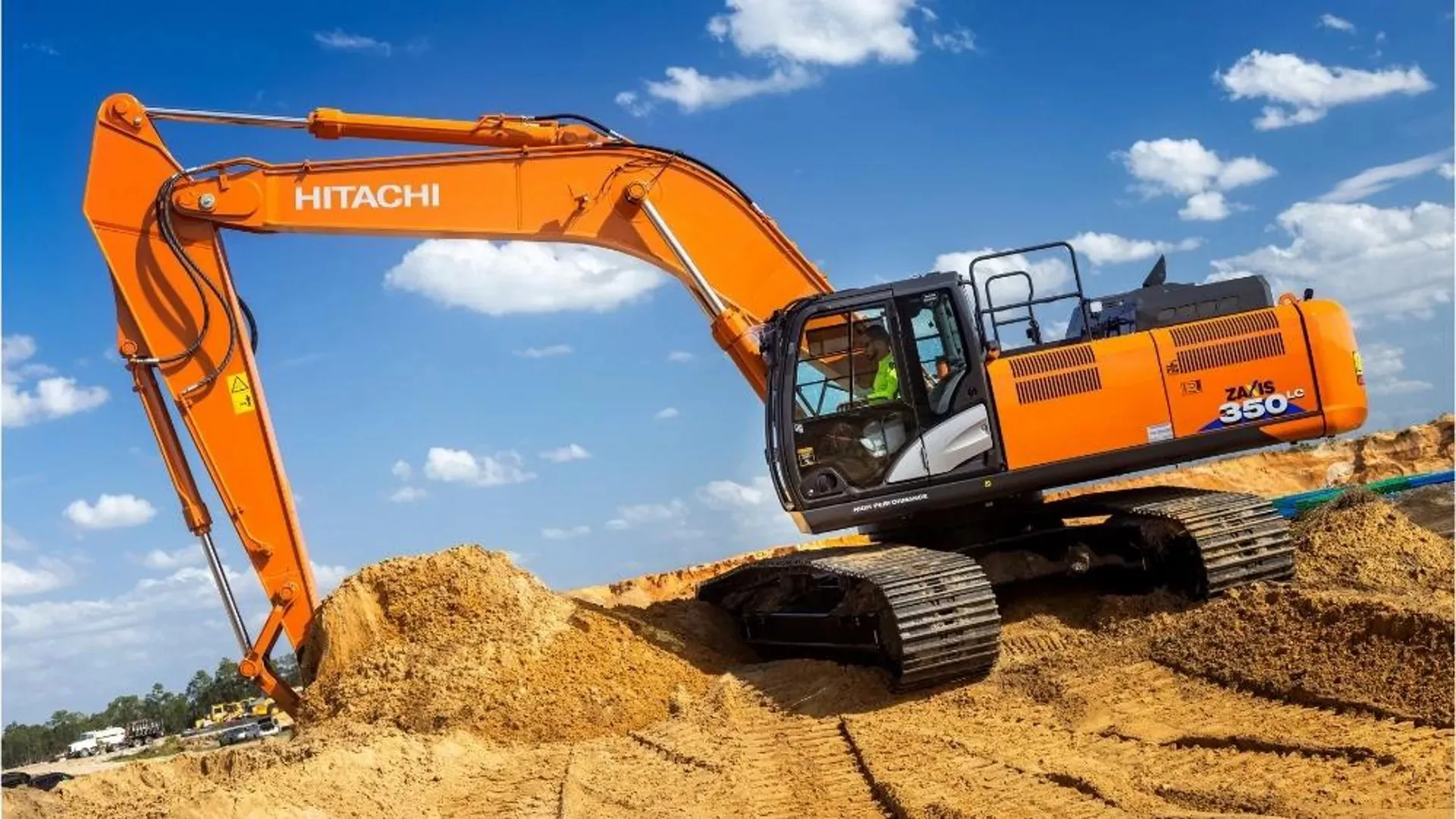

Caption: Tata Hitachi HITACHIZAXIS350LCK Crawler Excavator in jobsite field operations
Tata Hitachi HITACHIZAXIS350LCK
Large Excavator (25 - 50t) · Crawler Chassis
The official operating weight of the Tata Hitachi HITACHIZAXIS350LCK is 34,100 kg (75,177.5 lbs), with a net engine output of 246.8 HP and a maximum digging depth of 6.48 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).
Engine & Powertrain
- Engine Make / Model
- AA-6HK1X
- Net Power
- 246.8 HP (184 kW)
- Gross Power
- 246.8 HP
- Displacement
- 7.79 L
- Emissions Standard
- EPA Tier 4 / EU Stage V
Operational & Hydraulics
- Operating Weight
- 34,100 kg
- Weight (lbs)
- 75,177.5 lbs
- Hydraulic System Flow
- 580.3 L/min
- Fuel Tank Capacity
- N/A
- Standard Bucket
- 1.45 m³
Working Dimensions & Dig Depth
- Max Digging Depth
- 6.48 m (21.3 ft)
- Max Reach (Ground)
- 10.90 m
- Max Dump Height
- 7.13 m
- Shipping Width
- 3191 mm
- Shipping Height
- 3310 mm
Source & Configuration
Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.
Authentic In-Field Operation Footage
Real-world Tata Hitachi HITACHIZAXIS350LCK jobsite telemetry & machine handling demonstration
Frequently Asked Questions about Tata Hitachi HITACHIZAXIS350LCK
How much does a Tata Hitachi HITACHIZAXIS350LCK excavator weigh?
The official operating weight of the Tata Hitachi HITACHIZAXIS350LCK hydraulic excavator is 34,100 kg (75,177.5 lbs) (34.1 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.
What is the maximum digging depth of the Tata Hitachi HITACHIZAXIS350LCK?
The maximum digging depth for the Tata Hitachi HITACHIZAXIS350LCK is 6.48 m (21.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.
What engine and horsepower does the Tata Hitachi HITACHIZAXIS350LCK have?
The Tata Hitachi HITACHIZAXIS350LCK is powered by a AA-6HK1X powertrain delivering 246.8 HP (184 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.
What class of excavator is the Tata Hitachi HITACHIZAXIS350LCK?
The Tata Hitachi HITACHIZAXIS350LCK is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
