Volvo EC340D Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

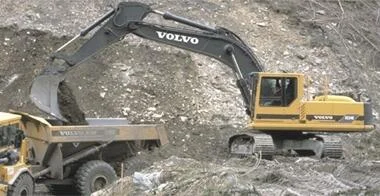

Caption: Volvo EC340D Crawler Excavator in jobsite field operations

Volvo logoHydraulic Excavator

Volvo EC340D

Large Excavator (25 - 50t) · Crawler Chassis

Operating Weight34.1 T Class
34,137 kg
≈ 75,259.1 lbs
Max Dig DepthGround Reach
6.50 m
≈ 21.3 ft
Net Engine PowerCrawler
283 HP
≈ 211 kW
Verified Technical Fact Sheet · Volvo EC340D

The official operating weight of the Volvo EC340D is 34,137 kg (75,259.1 lbs), with a net engine output of 283 HP and a maximum digging depth of 6.50 m. Classified as a Large Excavator (25 - 50t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D13H
Net Power
283 HP (211 kW)
Gross Power
293 HP
Displacement
12.8 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
34,137 kg
Weight (lbs)
75,259.1 lbs
Hydraulic System Flow
600.4 L/min
Fuel Tank Capacity
N/A
Standard Bucket
2.14 m³

Working Dimensions & Dig Depth

Max Digging Depth
6.50 m (21.3 ft)
Max Reach (Ground)
11.52 m
Max Dump Height
7.56 m
Shipping Width
3392 mm
Shipping Height
3481 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC340D jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC340D

How much does a Volvo EC340D excavator weigh?

The official operating weight of the Volvo EC340D hydraulic excavator is 34,137 kg (75,259.1 lbs) (34.1 metric tonnes), categorizing it within the Large Excavator (25 - 50t) range.

What is the maximum digging depth of the Volvo EC340D?

The maximum digging depth for the Volvo EC340D is 6.50 m (21.3 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC340D have?

The Volvo EC340D is powered by a D13H powertrain delivering 283 HP (211 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC340D?

The Volvo EC340D is classified as a Large Excavator (25 - 50t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
