Volvo EC50 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: None

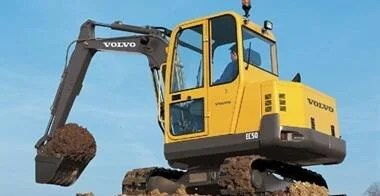

Caption: Volvo EC50 Crawler Excavator in jobsite field operations

Volvo logoMidi Excavator

Volvo EC50

Mini Excavator (2 - 6t) · Crawler Chassis

Operating Weight4.8 T Class
4,833 kg
≈ 10,654.9 lbs
Max Dig DepthGround Reach
3.07 m
≈ 10.1 ft
Net Engine PowerCrawler
45.2 HP
≈ 34 kW
Verified Technical Fact Sheet · Volvo EC50

The official operating weight of the Volvo EC50 is 4,833 kg (10,654.9 lbs), with a net engine output of 45.2 HP and a maximum digging depth of 3.07 m. Classified as a Mini Excavator (2 - 6t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
Manufacturer Proprietary
Net Power
45.2 HP (34 kW)
Gross Power
45.2 HP
Displacement
2.22 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
4,833 kg
Weight (lbs)
10,654.9 lbs
Hydraulic System Flow
102.6 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.15 m³

Working Dimensions & Dig Depth

Max Digging Depth
3.07 m (10.1 ft)
Max Reach (Ground)
6.42 m
Max Dump Height
4.83 m
Shipping Width
1850 mm
Shipping Height
2505 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo EC50 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo EC50

How much does a Volvo EC50 excavator weigh?

The official operating weight of the Volvo EC50 hydraulic excavator is 4,833 kg (10,654.9 lbs) (4.8 metric tonnes), categorizing it within the Mini Excavator (2 - 6t) range.

What is the maximum digging depth of the Volvo EC50?

The maximum digging depth for the Volvo EC50 is 3.07 m (10.1 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo EC50 have?

The Volvo EC50 is powered by a Volvo OEM powertrain delivering 45.2 HP (34 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo EC50?

The Volvo EC50 is classified as a Mini Excavator (2 - 6t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
