Volvo ECR88 Hydraulic Excavator Jobsite Operation
VLM Certified Authentic Imagery
Watch Video
Photo: Machinery Media Network

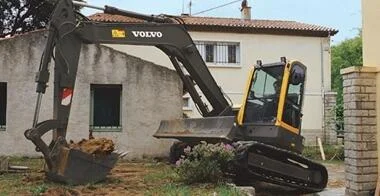

Caption: Volvo ECR88 Crawler Excavator in jobsite field operations

Volvo logoMidi Excavator

Volvo ECR88

Midi Excavator (6 - 10t) · Crawler Chassis

Operating Weight8.2 T Class
8,182 kg
≈ 18,038.2 lbs
Max Dig DepthGround Reach
3.26 m
≈ 10.7 ft
Net Engine PowerCrawler
56.8 HP
≈ 42 kW
Verified Technical Fact Sheet · Volvo ECR88

The official operating weight of the Volvo ECR88 is 8,182 kg (18,038.2 lbs), with a net engine output of 56.8 HP and a maximum digging depth of 3.26 m. Classified as a Midi Excavator (6 - 10t) (Crawler chassis).

Engine & Powertrain

Engine Make / Model
D3.4
Net Power
56.8 HP (42 kW)
Gross Power
59 HP
Displacement
3.32 L
Emissions Standard
EPA Tier 4 / EU Stage V

Operational & Hydraulics

Operating Weight
8,182 kg
Weight (lbs)
18,038.2 lbs
Hydraulic System Flow
174.1 L/min
Fuel Tank Capacity
N/A
Standard Bucket
0.23 m³

Working Dimensions & Dig Depth

Max Digging Depth
3.26 m (10.7 ft)
Max Reach (Ground)
7.24 m
Max Dump Height
5.12 m
Shipping Width
2301 mm
Shipping Height
2682 mm
Specification Provenance

Source & Configuration

How we verify specifications→
Official Literature
Volvo Technical Specification
Benchmark Operating Configuration

Standard OEM factory configuration: crawler undercarriage with standard mono boom, standard arm, and general purpose excavation bucket.

Engine Rating Standards
Market: Global OEM
Verified:2026-10-02

Authentic In-Field Operation Footage

Real-world Volvo ECR88 jobsite telemetry & machine handling demonstration

Technical FAQ & Field Knowledge

Frequently Asked Questions about Volvo ECR88

How much does a Volvo ECR88 excavator weigh?

The official operating weight of the Volvo ECR88 hydraulic excavator is 8,182 kg (18,038.2 lbs) (8.2 metric tonnes), categorizing it within the Midi Excavator (6 - 10t) range.

What is the maximum digging depth of the Volvo ECR88?

The maximum digging depth for the Volvo ECR88 is 3.26 m (10.7 ft), offering optimal ground reach for civil utility trenching, footings, and earthmoving.

What engine and horsepower does the Volvo ECR88 have?

The Volvo ECR88 is powered by a D3.4 powertrain delivering 56.8 HP (42 kW) net engine power, engineered for high fuel efficiency and hydraulic breakout force.

What class of excavator is the Volvo ECR88?

The Volvo ECR88 is classified as a Midi Excavator (6 - 10t) Crawler excavator, engineered for civil earthmoving, commercial construction, utility trenching, and severe-duty site excavation.
